Furitek MicroSilk 2025 Brushless Power System with MicroPython and MiniKomodo For Axial SCX24
$99.99
$0.00( / )
Furitek MicroSilk 2025 Brushless Power System with MicroPython and MiniKomodo For Axial SCX24 MicroPython Features: - FOC (Field-Orientated control technology) - Live tunning on Furicar app - Super slow and ridiculously smooth throttle control - New firmware algorithm to consistently smooth up the start up to FOC stage - Work...
Furitek MicroSilk 2025 Brushless Power System with MicroPython and MiniKomodo For Axial SCX24

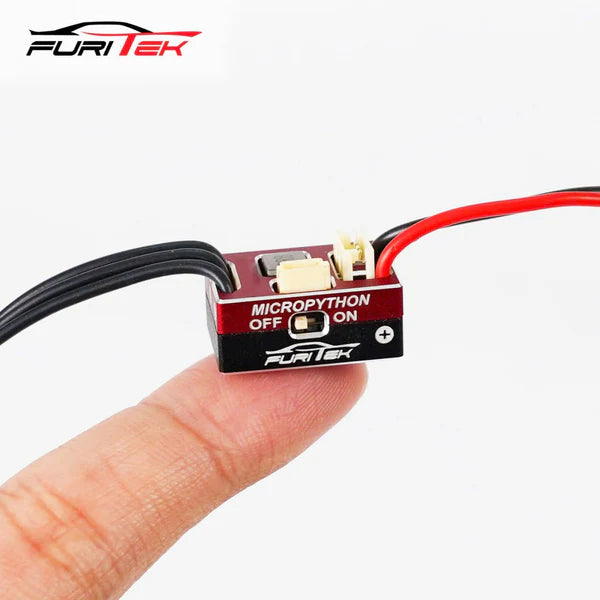

MicroPython Features:
- FOC (Field-Orientated control technology)
- Live tunning on Furicar app
- Super slow and ridiculously smooth throttle control
- New firmware algorithm to consistently smooth up the start up to FOC stage
- Work with Brushed/Brushless motors (config via app, default is brushless)
- BIG BEC for power-hungry servos
- Micro size and super light weight
- Super easy programming via App on both Android and iOS
- Real-time telemetry up to 10Hz
- Waterproof and dustproof with an enclosing CNC aluminum case
- FREE lifetime firmware updates
MicroPython Specifications:
- Supports 2-3S lipo batteries
- BEC: 5.5V/7.4V 5A
- Constant current: 25A
- Burst current: 50A
- Built-in power switch
- Dimensions:
- Weight:
Extra requirements:
- A new Two-channel radio system
Mini Komodo V2 Features:
- 14 Pole 12 slot hi-torque motor design
- High purity and higher temperature single copper windings ---lower copper losses,
very good heat dissipating--maximizes efficiency
- Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency
Japansese NMB --High RPM ABEC5 bearings
- Precision balanced rotor, smoothness for best reliability and maximum RPM
CNC machined 6061 T6 billet aluminum heatsink can
- Precision engineered for maximum energy conversion
MiniKomodo V2 Specifications:
- Kv (RPM/Volt) 2500
- No-load Current(@10v)
- Watt 160W
- Battery 2-4S
- Resistance 0.20ohm
- Max Current 14A
- Slot/Pole 12S14P
- Motor Size Ø 23 * 15mm
- Stator Size 1806
- Weight(g) 19g
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
FUR-2632 |
| Weight: |
0.1 lb |
