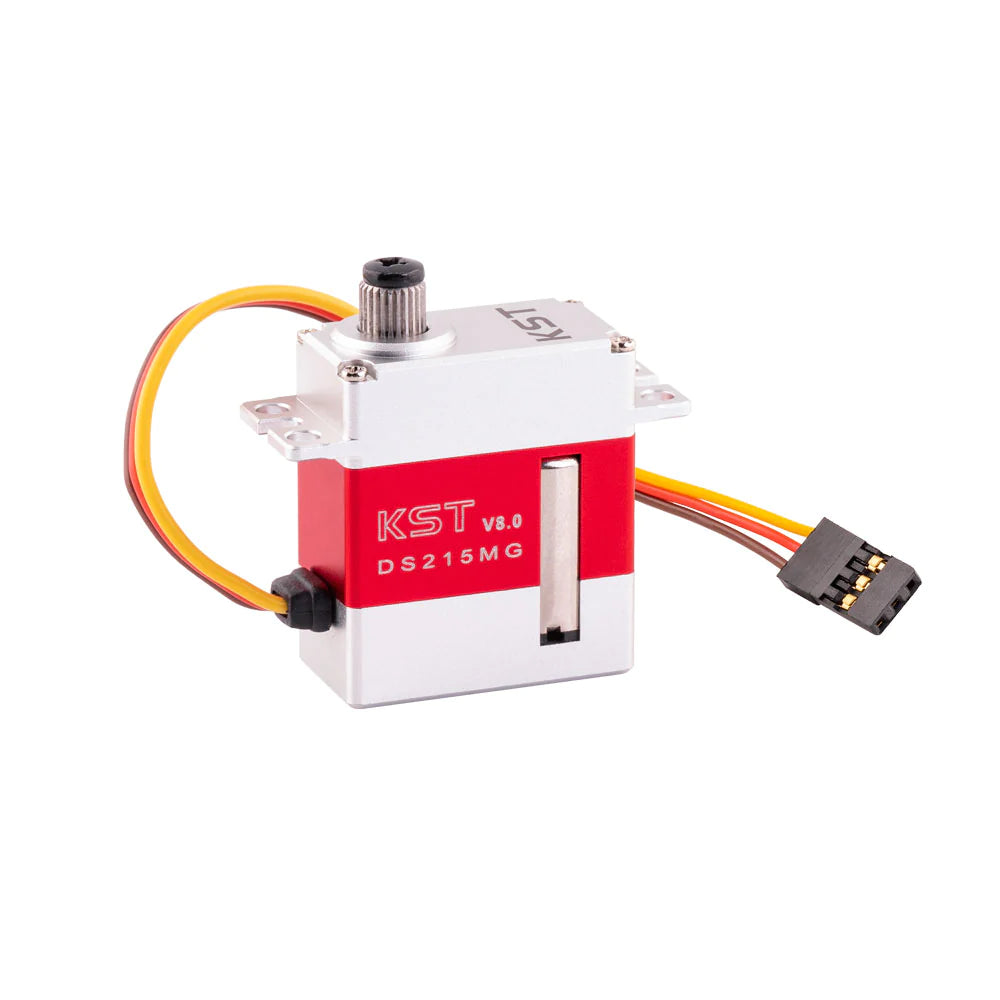

KST DS215MG V8.0 Digital Metal Gear Micro Servo
DS215MG HV servo is an amazingly powerful and fast metal cased high voltage servo designed to be run directly from a 2S LiPo without needing a regulator. With 3.7 kg.cm of torque and a rotational velocity of 0.05 sec/60° it combines exceptional power with great precision and market leading speed.
Weighing only 20 g it is a great servo for glider elevator & rudder and heli cyclic & tail rotor. Also popular on RC EDF jets. The KST DS215MG HV is designed for use with a 2S LiFe or 2S LiPo battery. Do not use on a 5V supply. It is the high voltage replacement of the acclaimed KST DS115MG servo.
Features
- Compact and lightweight design
- Excellent torque and speed
- Designed for high-performance RC Gliders
- Excellent heat dissipation
Specifications
- Item: DS215MG Micro Servo
- Operating Voltage: DC6.0V-7.4V
- Size: 23*12*27.50mm
- Torque: [email protected] / [email protected]
- Speed: 0.05sec/60°@7.4V / 0.06sec/60°@6.0V
- Weight: 20g
- Working Frequency: 1520us/333Hz, 800us-2200us
- Motor: Φ12mm Coreless
- Ball Bearing: 2BB
- Accessories: Metal Gear Set
Package Including
- 1 * DS215MG V8.0 Digital Metal Gear Mini Servo Motor
- 1 Pack of Accessories
Download
| Type: | |
|---|---|
| Vendor: | |
| SKU: |
DS215MG |
| Weight: |
0.19 lb |
Product Spare Parts
Customer Reviews
Very Satisfied With Product And Speedy Shipping.
Fits perfectly on my goblin Buddy 380
Perfect servo
Great fit for project
Great bag for the buck
Put these on my 470 and they work very well. Quick and plenty of response running on 8.4v
KST DS215MG V8.0 Digital Metal Gear Micro Servo
Perfect fit in my align 470 and performs great.
They fit nicely in my Blade Fusion 360 Smart and seem to function better than OEM servos
Nice servos good price point
These servos are much, must faster and stronger than the ones I replaced them with. A huge upgrade for old or tired servos and reasonably affordable as these things go. I have been really impressed with them so far -- and they have survived their first crash ;)
These are some awesome little servos! Strong, fast and a perfect replacement for my broken Turnigy 313c servos in my Trex 450 Pro V2.
