SAB IlGoblin KSE

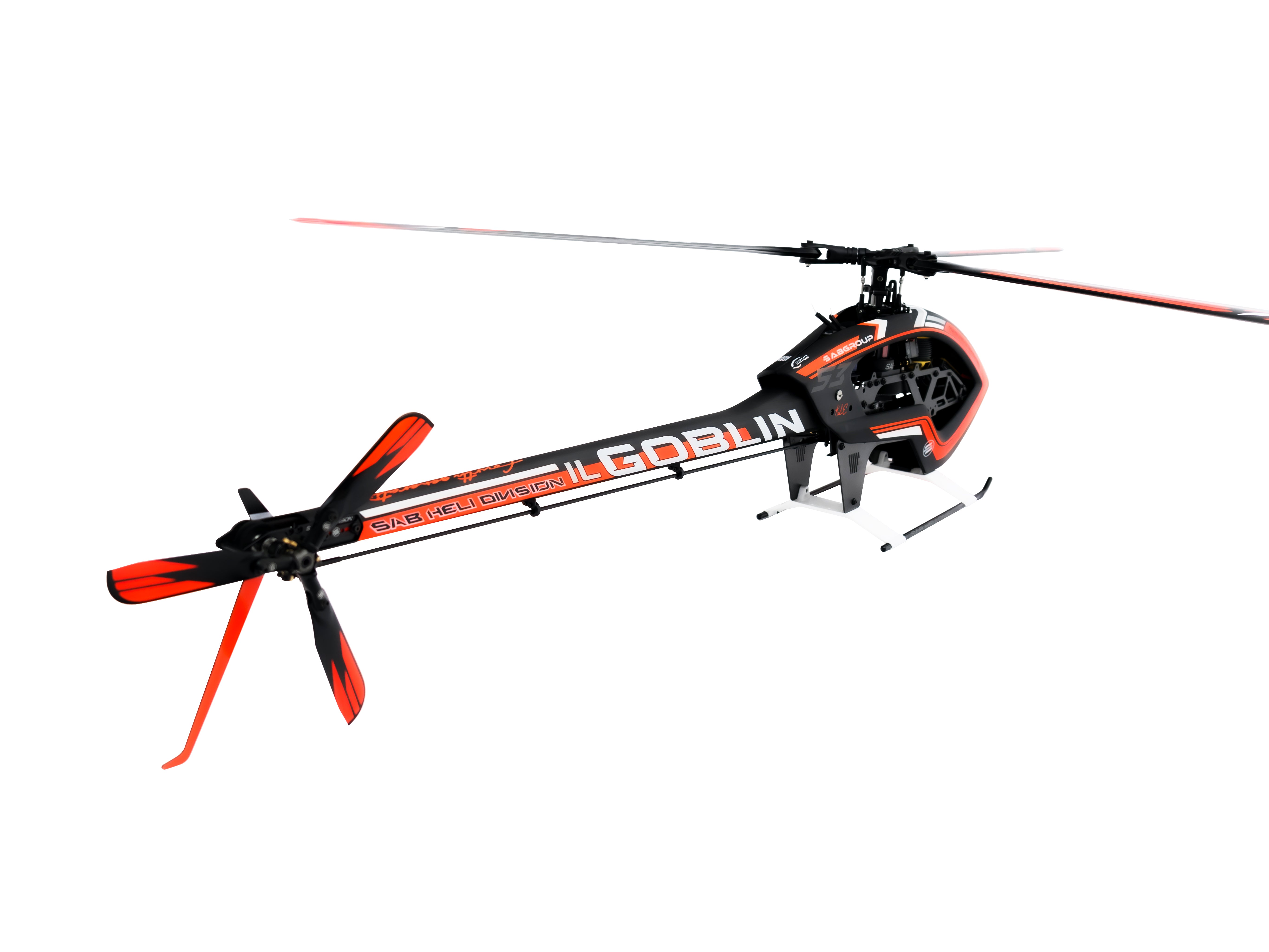

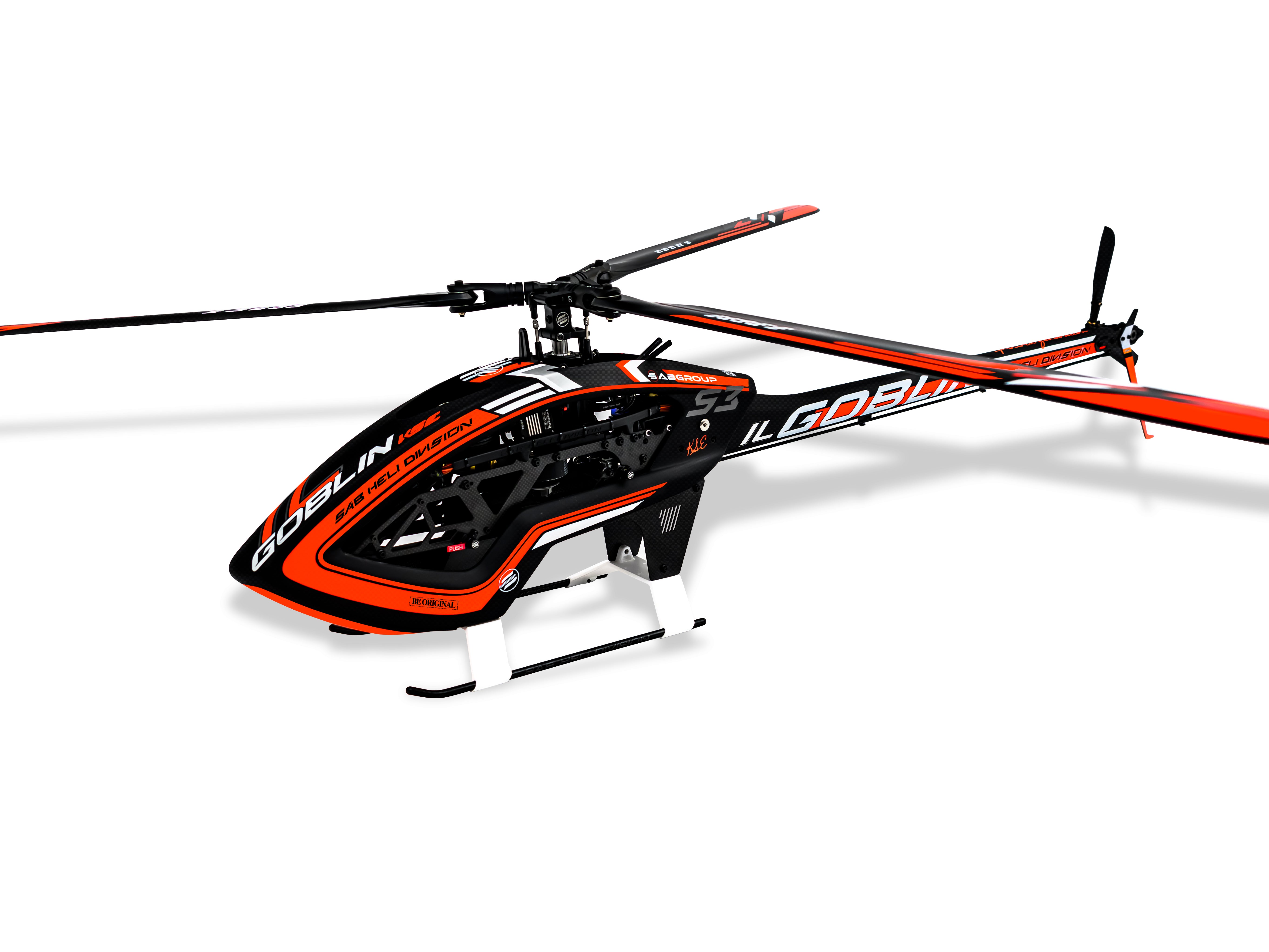

The iL Goblin Pro KSE elevates 3-blade flying to a whole new level. With a more robust transmission case, redesigned tail rotor, upgraded head design, and the cutting-edge S682mm blades, it sets the standard as the strongest and most precise 3-blade helicopter available. Its striking orange carbon fiber scheme adds a distinctive touch, making it truly one of a kind.

Specifications:

• AIRFRAME weight: 2272 gr (no blades, no battery, no electronics)

• Main rotor diameter: 1560 mm (with 682 mm main blades)

• Main blades length: 682 mm (3 Blades)

• Tail rotor diameter: 296 mm (with 110 mm tail blades)

• Tail blades length: 110 mm (3 Blades)

• Cyclic Servos: Standard size 40 mm

• Tail Servo: Standard size 40 mm

• Main Rotor Ratio: 11.8 to 8.8 (21T included: 10.1:1)

• Tail Rotor Ratio: 5.1-4.9:1 (26T included: 4.9:1)

• Main shaft: 15 mm, Tail shaft: 8 mm

• Molded carbon tail boom

• Typical motor: 12S, 480/560 KV

• Battery room: 50x60x300 mm

KIT Includes:

• 21T motor pulley (other pulley sizes available).

• 2 battery trays with integrated connectors.

• S6823-O Orange (682 mm main blades).

• S1103-O Orange (110 mm tail blades).

15mm main shaft

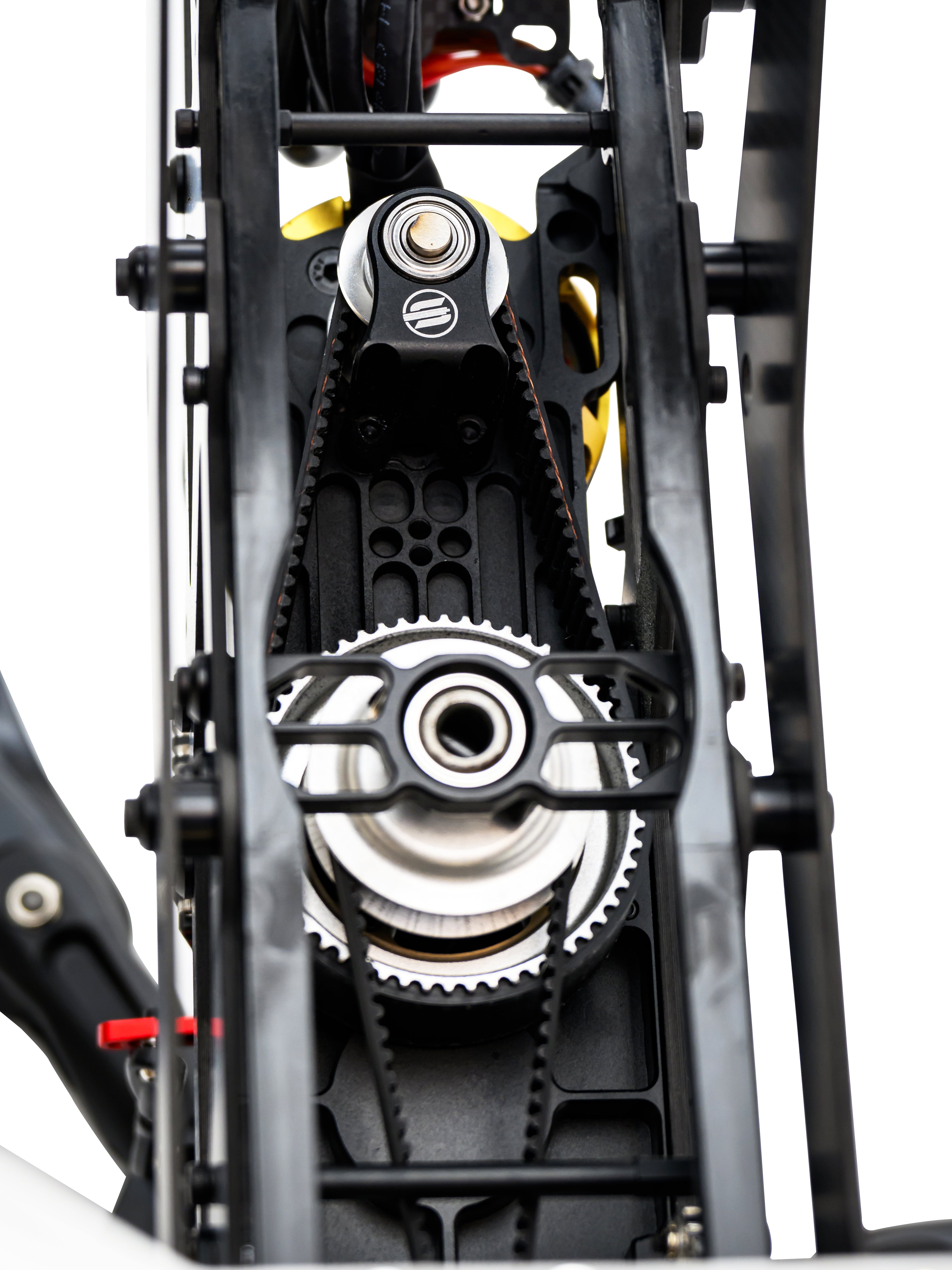

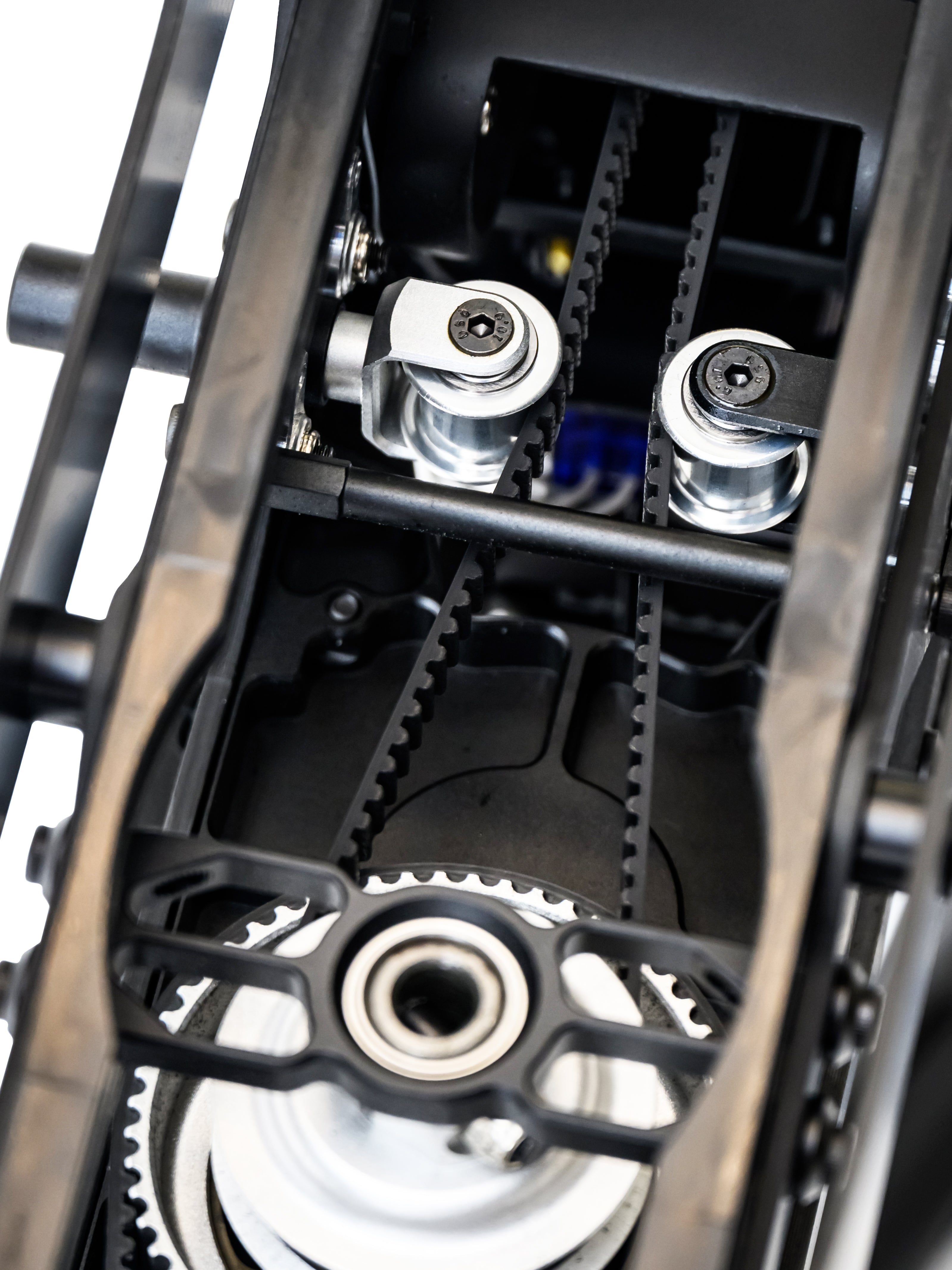

New gear box

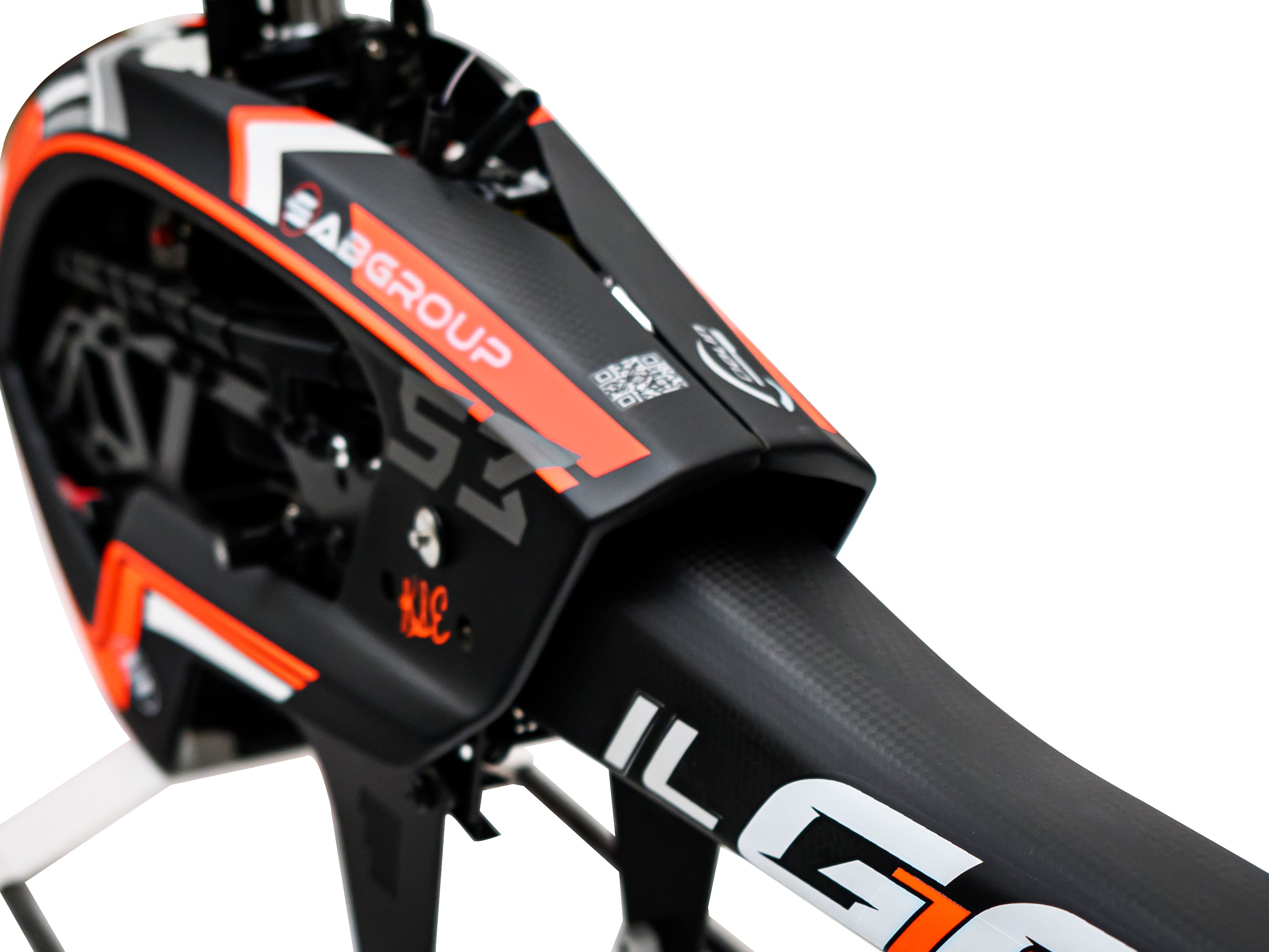

Speical painting scheme canopy and boom

ILGOBLIN PRO KSE boom and canopy in very special painting scheme in Orange, which make the model very unique and super visible

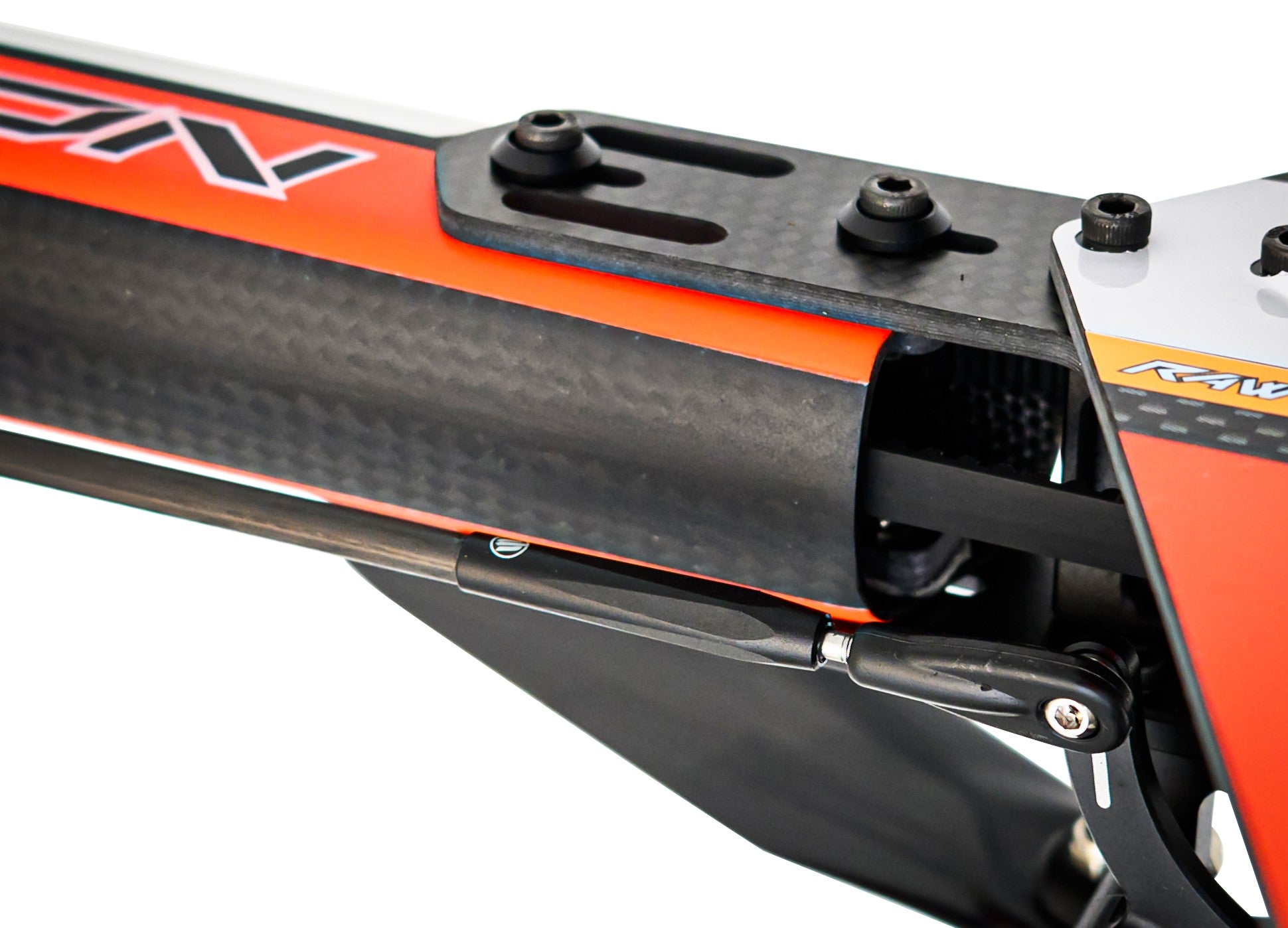

Carbon fiber all around

Canopy and boom is made with very high grade Carbon Fiber, which helps to reduce weight but more strength.

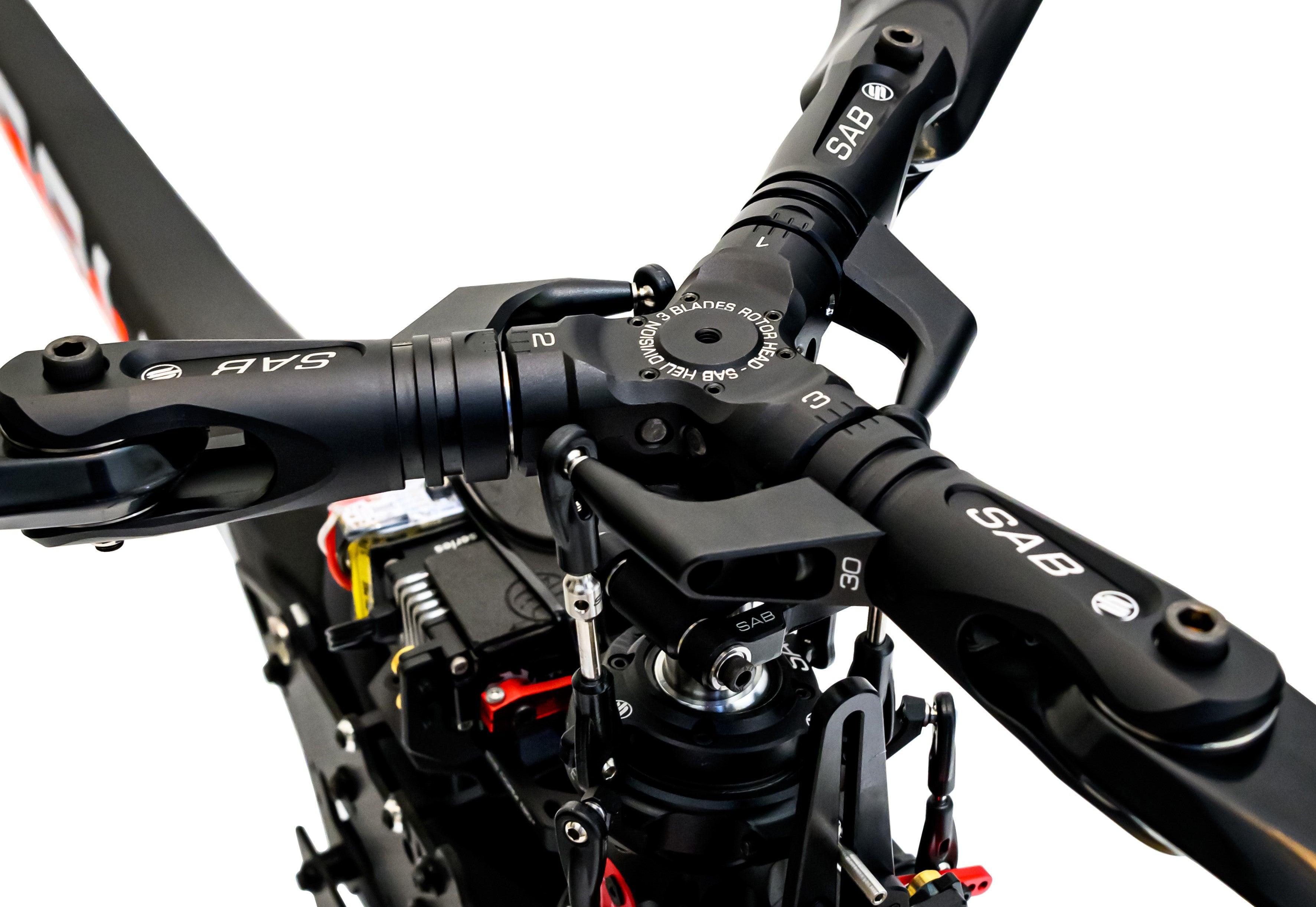

Self center titanium blades washers

Quick connect battery

With its unique design, you do not have to remove the canopy to change the batteries, they can be inserted from the rear with integrated connectors.
