Torq HLX Full Size Tail Servo - HeliDirect

Torq HLX Full Size Tail Servo

Vendor: TORQ Servos

SKU: HLX-T

Availability: In Stock

Earn [points_amount] when you buy this item.

Price Match Guarantee

$159.00; ~~$0.00~~; $159.00
Unit price: per

The order quantity exceeds the stock!

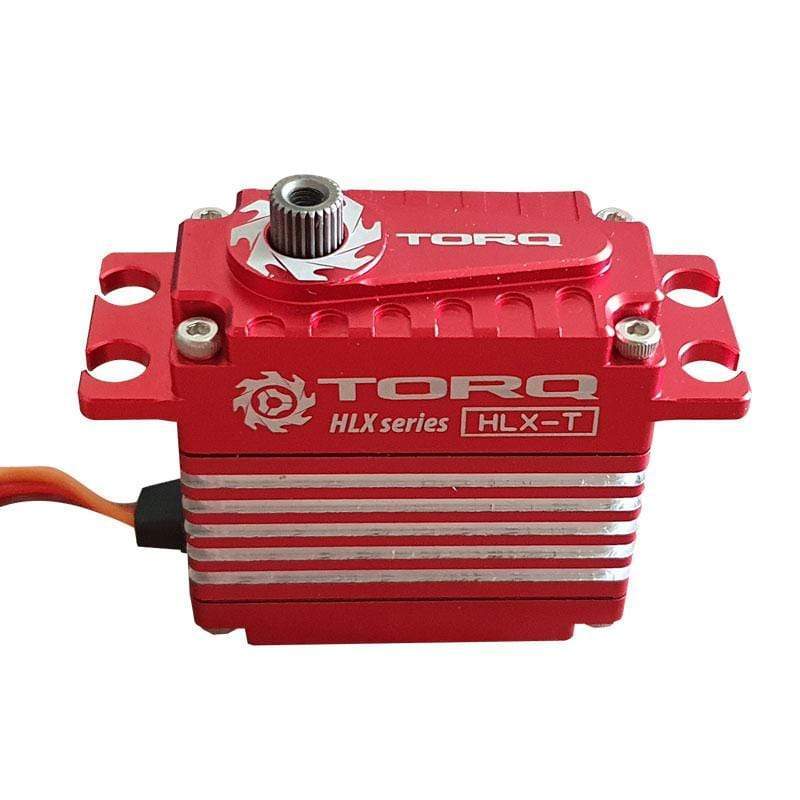

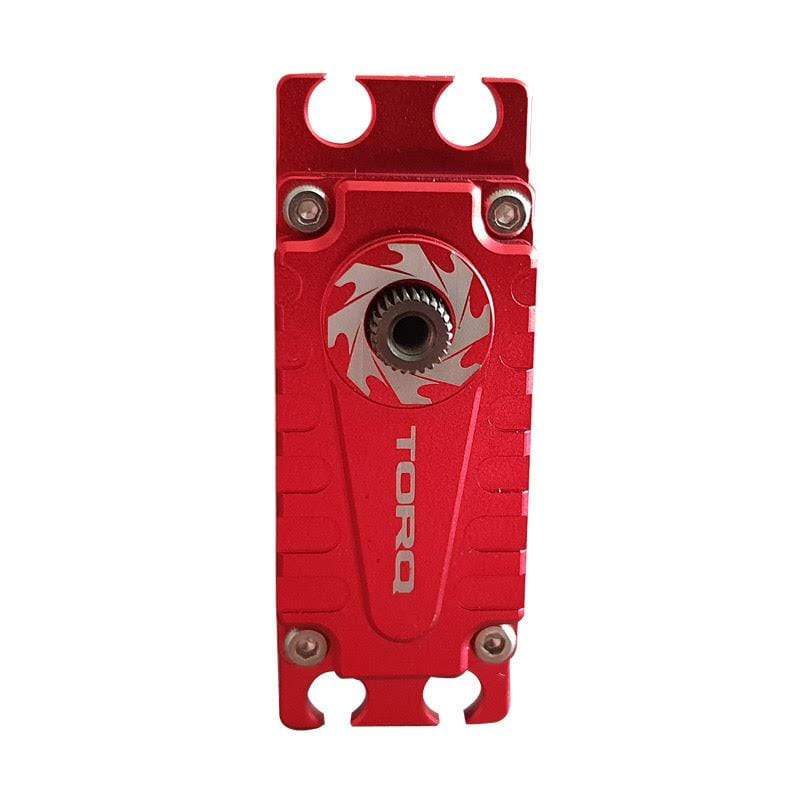

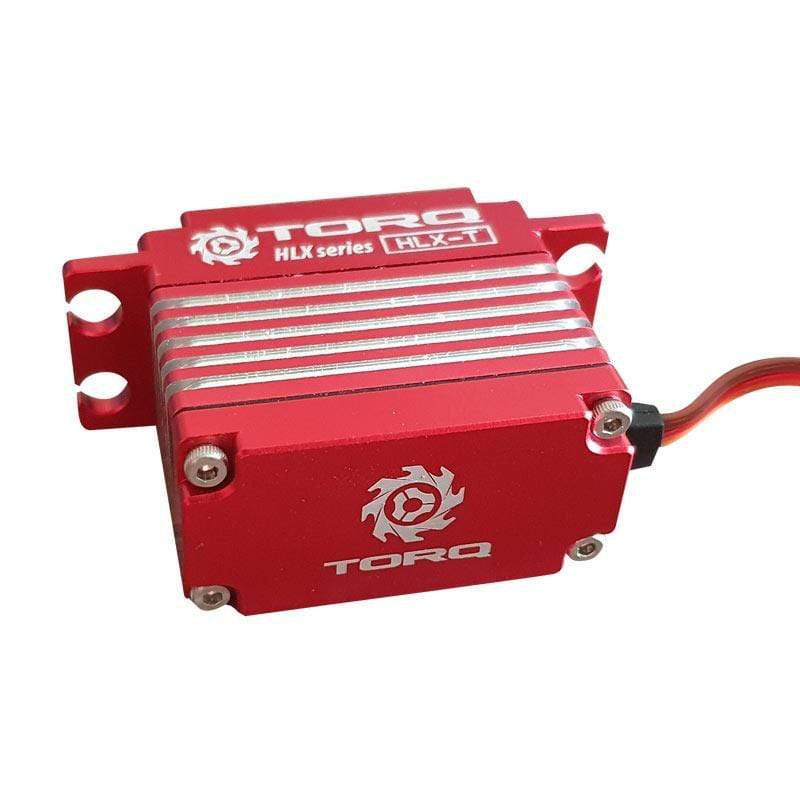

Torq HLX Full Size Tail Servo

~~$0.00~~ $159.00

Quantity:

Torq HLX Full Size Tail Servo

~~$0.00~~ $159.00

Description

Features:

- Using the newest Hall Sensor Technology
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Newly Design Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- 6 Ball Bearings Construction

Speed:

0.03 sec / 60° @ 8,2V
0.035 sec / 60° @ 7.4V
0.04 sec / 60° @ 6.0V

Torque:

13.0Kg.cm / 180,53 oz. in. @ 8.2V
11.0Kg.cm / 152,76 oz. in. @ 7.4V
9.0Kg.cm / 124,98 oz. in. @ 6.0V

Specifications:

Motor Type: Brushless
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz 450us-1050us
Weight: 80g
Dimensions: 40mm x 20mm x 40mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:

For helicopter rudder usage only. Please note that the TORQ HLX-T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.

Additional Information

Vendor:	TORQ Servos
SKU:	HLX-T
Barcode:	0769923264882
Availability:	In Stock
Product Type:	Heli Servo
Weight:	0.3 lb

Recently Viewed Products

HLX-T

I have used these in several customers Helis black and red and haven't had any complaints. These are great servos

Torq servos the best quality we can trust

HeliDirect excellent and quality goods supply Quick worldwide delivery.

Works well so far

Love the fact that its Hall Effect. Time will tell how much longer it lasts over potentiometer based servos. But its a solid performer for the money.

Torq HLX-T

Extremely precise tail servo and very well made.

Torq HLX-T

Great servo

Blazing, strong and precise servo.

I have several helicopters using Torq servos. This one is sitting in a new SAB Raw 580. This is the first HLX series. I’m totally impressed with its performance. The servo box makes setup a breeze. I did use the Torq mini servos on the collective, in retrospect I think using the HLX series might be a good choice there as well but the mini’s are a great servo too. You have many choices of servos. Based on my experience, this is a good one to look at.
