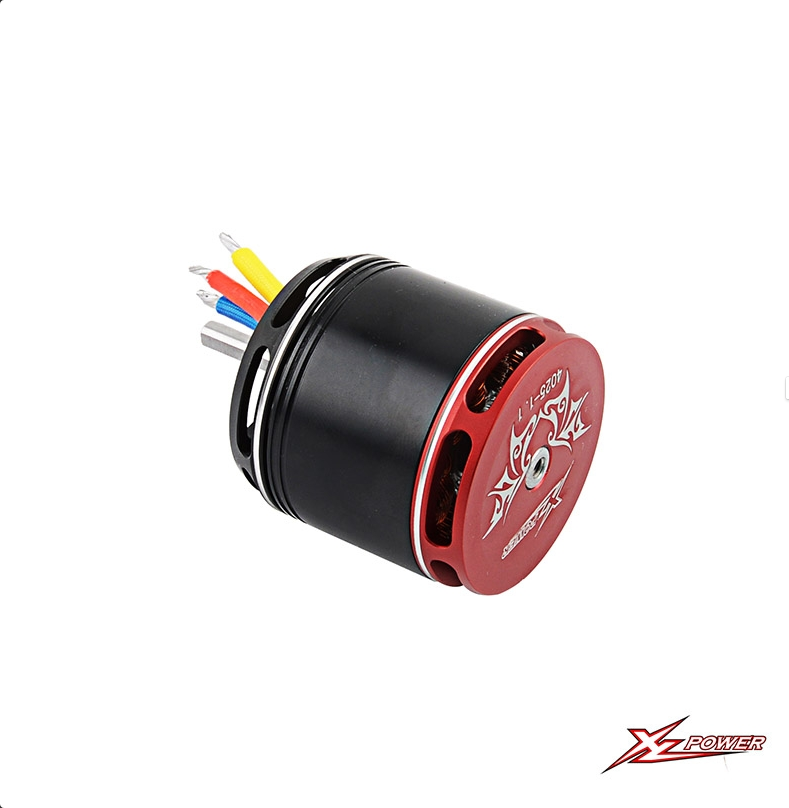

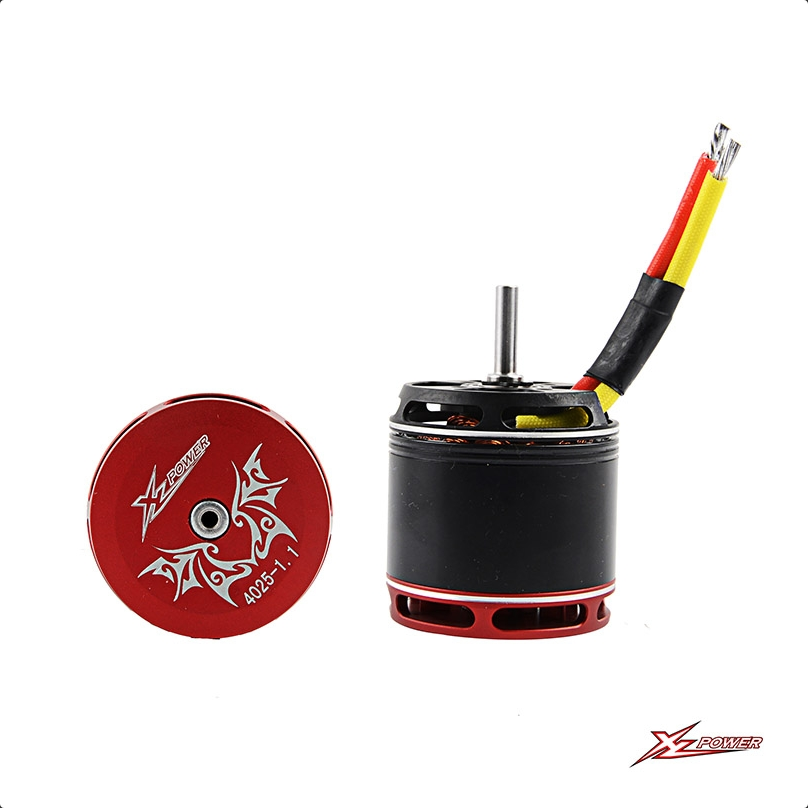

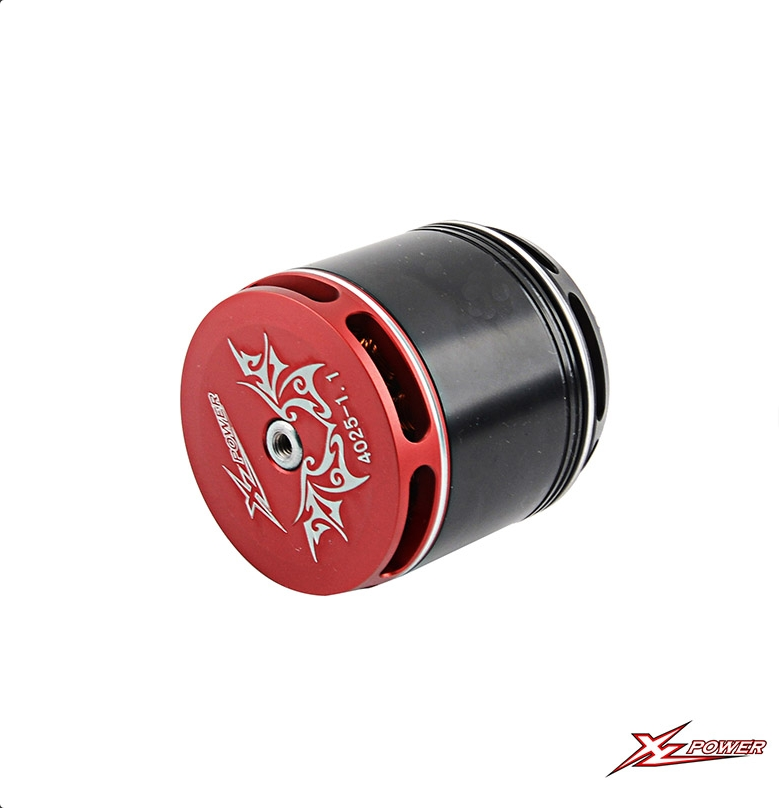

XLPower 4025-1100kv Motor

XLPower Heli
|
XL52M03
You will earn 129 points for buying this product
Price Match Guarantee
$129.00 $0.00( / )
Specifications: Stator Diamrter 40mm Stator Thickness 25mm No.of Stator Arms 12 Magent Poles 10 Motor Wind 3.5T/△ Motor Wire 13×0.35mm Motor KV 1080 No-Load current(Io/10v) 3.5A Motor Resistance(RM) 0.0076 Ohms Max Continuous Current 95A Max Continuous Power 2350W Weight 308g Outside Diameter 49mm Shaft Diameter 5mm Body Length 50mm Overall...

Specifications:

  • Stator Diamrter 40mm

  • Stator Thickness 25mm

  • No.of Stator Arms 12

  • Magent Poles 10

  • Motor Wind 3.5T/△

  • Motor Wire 13×0.35mm

  • Motor KV 1080

  • No-Load current(Io/10v) 3.5A

  • Motor Resistance(RM) 0.0076 Ohms

  • Max Continuous Current 95A

  • Max Continuous Power 2350W

  • Weight 308g

  • Outside Diameter 49mm

  • Shaft Diameter 5mm

  • Body Length 50mm

  • Overall Shaft Length 71.5mm

  • Max Lipo Cell 6s

  • Peak Current 125A/5s

  • Peak Continuous Power 2850W


Type:

Heli Motors

Vendor:

XLPower Heli

SKU:

XL52M03

Weight:

2.0 lb
