TORQ CL1208 Mini Coreless HV & BLS0704T Standard Brushless HV Rudder Servo Combo

TORQ Servos
|
TORQ-CLBL-CB
You will earn 349 points for buying this product
Price Match Guarantee
$349.00 $349.00( / )

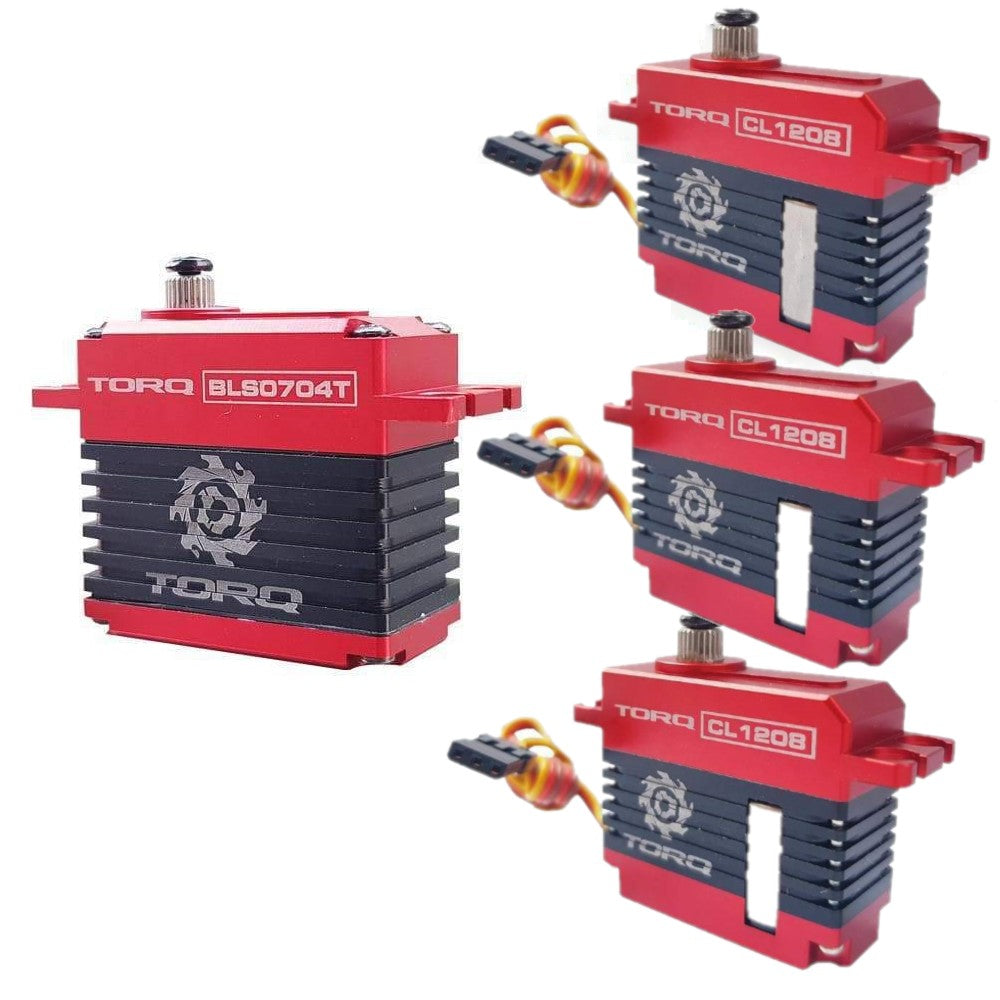

Combo includes: CL1208 (Mini Coreless HV Servo) * 3pcs BLS0704T (Full Size Brushless HV Rudder Helicopter Servo) * 1pcs Recommended for helicopter sized 550 - 600 CL1208 (Mini Coreless HV Servo) Features: - Engineered for High Performance Aircraft Extremes- Specifically Designed for Helicopter, Airplane or Jet Based Applications- Massive Levels...

Combo includes:

  • CL1208 (Mini Coreless HV Servo) * 3pcs
  • BLS0704T (Full Size Brushless HV Rudder Helicopter Servo) * 1pcs

Recommended for helicopter sized 550 - 600

CL1208 (Mini Coreless HV Servo)

Features:

- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design

Torque:

13.5Kg.cm / 187.47 oz. in @ 8.4V
12.0Kg.cm / 166.64 oz. in. @ 7.4V
9.8Kg.cm / 136.09 oz. in. @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.10 sec. @ 6.0V

Specifications:

Motor Type: Coreless Motor
Servo Arm Type: Futaba
Weight: 40g
Operating Voltage: 6.0V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz  or  760us / 560Hz (need the TBOX Program Card)
Dimensions: 35.5mm x 15mm x 32.5mm (LxWxH)

Usage Note:
Servo Grommet is suggested use if you use our servo on Nitro Heli.

BLS0704T (Full Size Brushless HV Rudder Helicopter Servo)

Features:

- Brushless Motor Technology for the Ultimate Power & Control
- Blistering 0.035 Second Transit Speed
- Dedicated Helicopter Rudder Servo
- Incredible Levels of Speed & Performance
- Ultra Precise, High Resolution Control
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via Finned 6061 Aluminum Case
- 8.4V High Voltage Ready
- Optimized for High Demand Rudder Control
- Dual Ball Bearing Construction

Speed:

0.035 sec / 60° @ 8.4V
0.040 sec / 60° @ 7.4V
0.045 sec / 60° @ 6.0V

Torque:

8.0Kg.cm / 111.09 oz. in. @ 8.4V
7.0Kg.cm / 97.21 oz. in. @ 7.4V
6.0Kg.cm / 83.32 oz. in. @ 6.0V

Specifications:

Motor Type: Brushless
Servo Arm Type: Futaba
Working Pulse Width / Frequency: 760us / 560Hz
Weight: 78g
Dimensions: 40.5mm x 20mm x 37mm (LxWxH)
Voltage Range: 6.0V - 8.4V

Usage Note:
For helicopter rudder usage only. Please note that the TORQ BLS0704T servo must be connected to a flybarless flight controller that is set at a 760us pulse width setting for proper functionality. Due to the 760us pulse width, if the servo is connected to a receiver or servo tester, the servo will not properly function due to these applications that use a 1520us pulse width.
Servo Grommet is suggested use if you use our servo on Nitro Heli.

Type:

Heli Servo

Vendor:

TORQ Servos

SKU:

TORQ-CLBL-CB

Weight:

0.44 lb
